Adaptive
Emergency Exit
Signs

THE
VALENCIA
RANGE



3 year warranty

Complies with BS5266-1 and conforms to EN60598.2.22 with IEC 60598-12014, ISO 30061, ISO 3864-1 & ISO 3864-4. Pictograms format compliant to ISO 7010.

Plastic body suitable for use on ceilings or walls.

LED Life > 36,000+ hour LED version.

Suitable for single -sided use.

Available in self-contained AC/DC with 3 hour back-up battery.



Specification

Self-contained Dynamic edge-lit exit sign utilising an LED light source. Pastic body suitable for use in ceiling or walls. ISO legend illumination compliant with the requirements of EN1838. Luminaire compliant to EN60598-2-22, ISO 30061, ISO 3864-1 & ISO 3864-4. Pictograms format compliant to ISO 7010.

Features

Maintained with self-contained power supply.

Fully adaptive, maintained emergency exit sign
triggered by 5-48VDC.
Battery pack LiFePO4 3.2V 600mAh 0-60oC.
AC Mains (220-240VAC) input, 50/60hz.
3W max output.
Push fit connectivity.
Self-test and manual test with bi-colour LED.
Suitable for solid wall installation indoors (IP20) –
845g.



Materials

Body: Plastic push-fit box in white.

Battery

LiFePO4 3.2V 600mAh 0-60oC.

Installation Notes

Valencia is suited for solid ceiling installation
The unit is retained into ceiling by two screw fittings.

Fire alarm panel connectivity

The Valencia  Exit Sign 2x relay contacts are provided to enable the adaptive/redcross behaviour to be triggered.

The sign’s behaviour is dictated by a 5-48VDC trigger
and in accordance with the building’s fire strategy.

System Mode (LED)

Maintained





The Valencia is an aesthetically pleasing versatile, surface mounted emergency exit luminaire with conventional functionality plus extra performance and styling provided by the  Adaptive LED RED CROSS

  • Entry level Adaptive Exit Sign ( Red cross)

  • Award-winning technology and innovation

  • Installation is ideal for walls or ceilings

  • Available in a standard white housing

  • Complies with BS5266-1 and conforms to EN60598.2.22 with IEC 60598-12014, ISO 30061, ISO 3864-1 & ISO 3864-4.

  • IP20 rated: protected against solid objects up to 12mm



REQUEST DATA SHEET

EASY TO INSTALL

Installation is ideal for walls or ceilings.  Available in a standard white housing

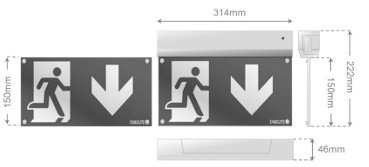

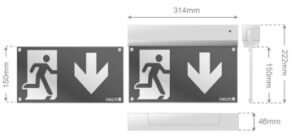

DIMENSIONS (mm)

Box: Length 314  Width 46 Depth 72

Blade: Length 314  Width 7 Depth  150



Legend Panel ISO Pictogram Cat no
Single sided up arrow VLC/AS/SD/30/AA-W
Single sided down arrow

VLC/AS/SD/30/AA-W
Single sided left arrow

VLC/AS/SD/30/AA-W
Single sided right arrow

VLC/AS/SD/30/AA-W
